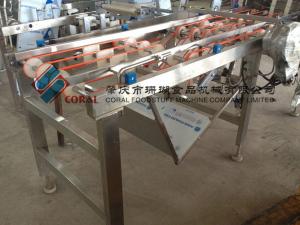

Sheet Picking Machine

The sheet picking machine is able to automatically detect if there is missing corner, and if the answer is yes, this wafer sheet is selected and disposed. There are two photoelectric switches on top of the conveyor, one is on the left, and the other is on the right. They are used to detect the wafer sheet, and the tolerance grade can be set based on the practical application. If a wafer sheet misses corner, signal will be received, and the conveyor belt will descend automatically to deliver the broken wafer to the recycling container which is fixed under the conveyor.

Technical Parameters
1. Materials: The shell is made of 304 stainless steel.
2. Motor: SEW, Germany
3. Photoelectric switch: ROKO
4. Pneumatic pressure: 4kg/cm2
5. Size (L×W×H): 2000×860×1420mm
6. Power: 0.36kW
